Cylindrical Lens

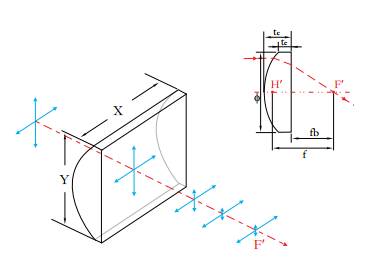

High Performance Plano-Convex Cylindrical Lens

Applications:

        WSS

     Telecommunication Systems

     Laser Measurement System

Capability:

Material: N-BK7, grade A

Typical Dimension X×Y(mm) : 5.0×5.0 mm

Surface Quality : 60-40

Centration: 5 arc min

Surface Figure(per 25mm @632.8nm) : λ/2

Length tolerance : +0/-0.2

Tolerance of focal length : +/-2%

Tc tolerance: +/-0.1 mm

Note: Other sizes, Material and coatings are also available upon request.
