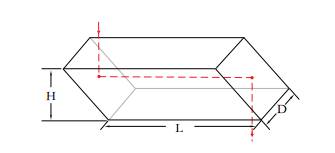

Rhomboid Prism

Applications:

         Switches

         Beam Alignment

Capability:

Material :BK7, SF11 grade A optical glass

Typical Dimension:1 x 1 x 1mm

Flatness: λ/8 @632.8 nm

Surface Quality (scratch/dig):better than 20-10

Angle Tolerance:<1 arc min.

Parallelism:<10 arc second

AR Coating: R<0.2%@λc+/--40nm, λc=1310nm, 1550nm...

Note: Other size,material and coating are also available upon request.
