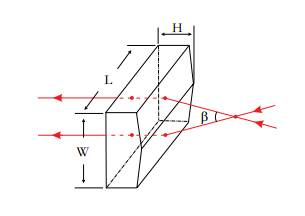

Roof Prism

Applications:

        Dual Collimator Beam Alignment

Capability:

Material: BK7 grade A optical glass or others

Typical Dimension:Mini. 1 x 1 x 1mm,  3 x 3 x 3mm

Flatness:λ/8 @632.8 nm

Angle Tolerance:+/-3 arc min.

Pyramid:<1 arc min.

Surface Quality (scratch/dig):better than 20-10

AR Coating:R<0.2%@λc+/--40nm, λc=1310nm, 1550nm...

Note: Other size,material and coating are also available upon request.
