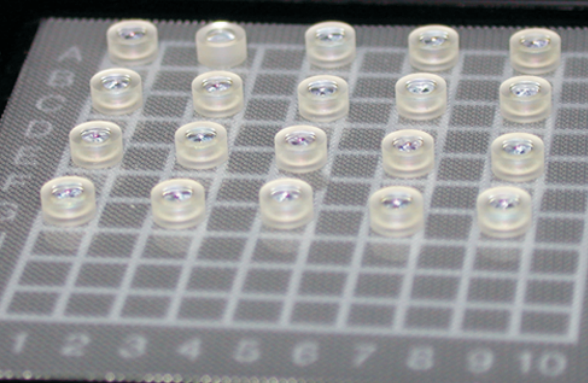

Laser Coupling Lens
Laser Coupling Lens
Laser Coupling Lens
Capability:
Typical Diameter | 1.0mm, 1.8mm, 2.8mm |
Dimension Tolerance | +0.005/-0.01mm |
Length Tolerance | <+/-0.02mm |

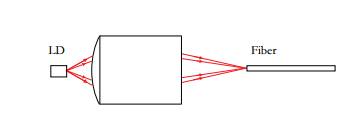

Typical Coupling Efficiency | >30% |
AR Coating | R<0.25%@λc+/-40nm, λc=1310nm, 1480nm, 1550nm... |
Note: Other sizes, coatings are also available upon request.
